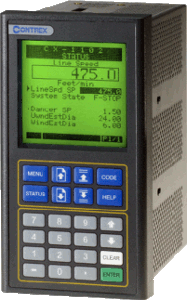

CX-1102 2 Axis Unwind/Dancer/Rewind Controller for Web Handling Applications OVERVIEW
The CX-1102 is a universal controller that can add precision web handling control to virtually any drive - old or new. Use it to operate both the unwind and wind axis in converting applications, with dancer trim. The CX-1102 can automatically calculate roll diameters without the need for surface encoders - allowing you to maintain constant line speed using only axle and dancer signals. FEATURESNo complicated programming required; interfaces with nearly any drive Built-in 2 axis control with automatic roll diameter calculation Help screens that make set-up and operation quick and simple Built-in PLC can help customize the application or coordinate with other machine control devices
|
CX-1102 Technical Reference Manual (1.3MB PDF)
CX-1102 Screen Map Guide (67KB PDF)
